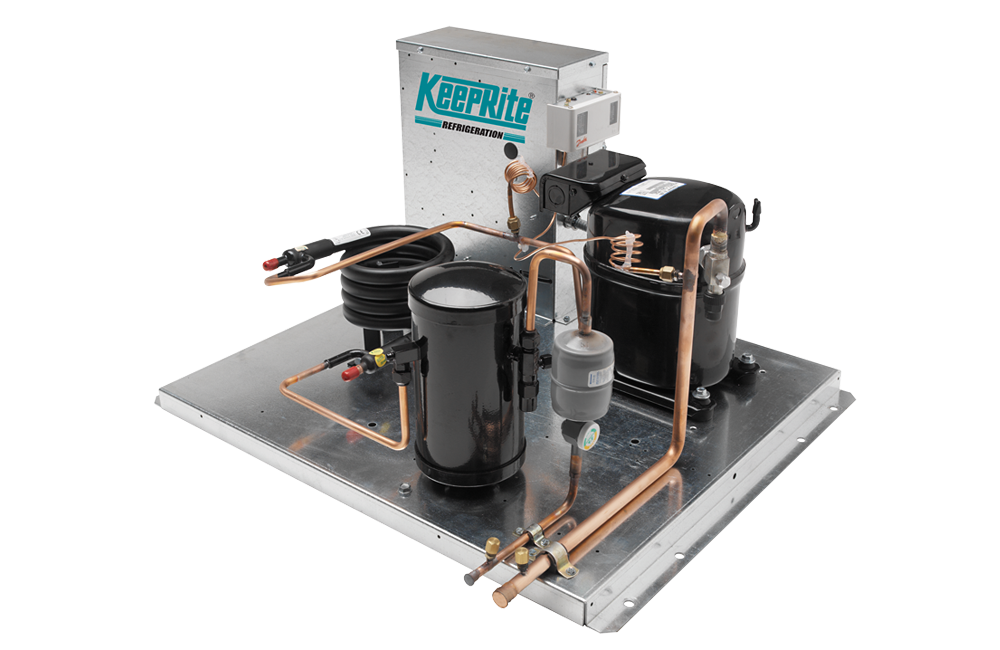

KX – Indoor Coaxial Water Cooled Condensing Units

Models range in capacity from ½ HP to 6 HP for high, medium and low temperature applications. Models feature Semi-Hermetic, Hermetic or Scroll compressors and are complete with many standard features all built into a spacious serviceable design.

KR – Indoor Compressor Unit for Remote Condenser
July 21, 2016
KW-Line – Water Cooled Condensing Units
July 21, 2016
Show all

CONTACT A PRODUCT SPECIALIST TODAY:

[email protected]
1-844-893-3222 ext. 523

Overview
Models range in capacity from ½ HP to 6 HP for high, medium and low temperature applications.Models feature Copeland Semi-Hermetic, Hermetic and Scroll compressors and are complete with many standard features all built into a spacious serviceable design.
Features/Options

Certification:
Features:
  • Painted weatherproof electrical control box with compressor contactor and fused control circuit
  • Pre-formed piping
  • Brass valves (KXH, KXZ)
  • Base valve on suction line (KXH)
  • Suction service valve (KXS, KXZ)
  • Copper tubing secured with cushion clamps
  • Semi-hermetics spring mounted with vibration absorber (KXS)
  • Hermetics/scrolls rubber mounted (KXH, KXZ)
  • Co-Axial condenser
  • Receiver with fusible plug and liquid shut off valve
  • Adjustable dual high / low pressure control with flex hoses
  • Each unit subjected to a thorough leak test with Helium leak-detectors
  • Units are shipped with Helium holding charge
  • Water reg valve (shipped loose)
Available Options:
  • Suction accumulator
  • Suction accumulator with boil-out coil
  • Discharge line check valve
  • Oil separator
  • Oil separator c/w oil return filter & solenoid valve
  • Receiver inlet ball valve
  • Over-sized receiver
  • Sealed liquid line filter drier & sight glass
  • Ball valve – liquid line (shipped loose)
  • Insulated suction lines
  • Liquid line solenoid valve (with standard 230 volt coil) – shipped loose
  • Compressor circuit breaker
  • Defrost heater contactor c/w fuse block
  • Evaporator fan contactor c/w fuse block
  • Disconnect switch
  • Disconnect fusing
  • Pump down toggle switch
  • Lock out control circuit – Liquid solenoid valve with separate HP and LP controls
  • Time delay relay for compressor
  • Mechanical time clock
  • Electronic voltage/phase monitor

Specifications

Application:
  • High, medium and low temperature applications.
  • Indoor water cooled coaxial
Capacity:
  • Sizes range from 1/2 HP to 6 HP for high, medium and low temperature applications
Electrical:
  • 230/1/60
  • 208-230/1/60
  • 208-230/3/60
  • 460/3/60
  • 575/3/60
  • 220/1/50
  • 200-220/1/50
  • 200-220/3/50
  • 380-400/3/50
