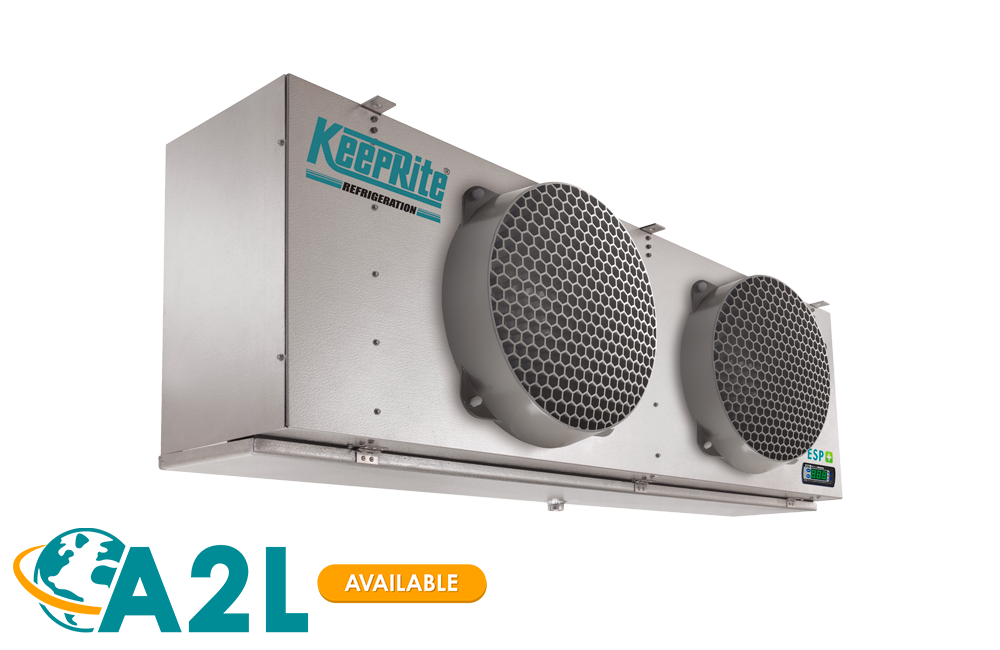

KLP – Low Profile Evaporators

Commercial Refrigeration Evaporator offering enhanced refrigeration technology for Walk-In Refrigeration Storage Space.

Overview

The LP Low Profile Unit Cooler line offers a compact flush to ceiling design featuring internally enhanced tube technology. Our most popular and efficient evaporator!

Storage space is optimized by a compact, slim profile, which provides uniform air distribution through the evaporator coil for maximum heat transfer performance. Many models also available as value-priced pre-assembled units.

We offer a complete line up of products that meet or exceed the new DOE/NRCAN 2020 “AWEF” requirements. Use this guide which collects all of the AWEF numbers for DOE/NRCAN 2020 Compliant equipment.

Additionally, we offer models for applications which are DOE/NRCAN 2020 “AWEF” Exempt. See our Product Data and Installation for full details

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ

Available features and Technology

Features/Options

Features

EC motors with patented SmartSpeed® Technology
Compatible with Low GWP Refrigerants
High efficiency and high strength fan guard
Front access
Internally enhanced tubing
Convenient mounting brackets
Ample electrical and header compartments
Liquid line solenoid valve wire harness factory installed
Schrader valve on suction header
Positive slope, hinged drain pan
Central drain connections (approximate)
Universal drain fitting
Large 3/4” ID (3/4” MPT) drain hole
Factory installed distributor nozzle

Available Options

ESP+ Intuitive Evaporator Control Technology
Hot gas loop pan with hot gas defrost models
Factory installed expansion valve, solenoid valve and room thermostat
Wire fan guard
Corrosion protection: alternate fin materials and coatings
Additional options available, please contact factory

Certification

ULCMEA

Specifications

Application

Medium and Low Temperature Applications
-30°F and above room temperatures
Air, electric and hot gas defrost (reverse cycle or 3 pipe) models
R407A, R448A, R449A, R404A, R507

Capacity

Medium Temp. models from 3,870 to 40,400 BTUH @10°F TD
Low Temp. models from 3,420 to 32,970 BTUH @10°F TD
V Low Temp. models from 2,700 to 28,400 BTUH @10°F TD

Electrical

115/1/60208-230/1/60208-230/3/60
