Overview

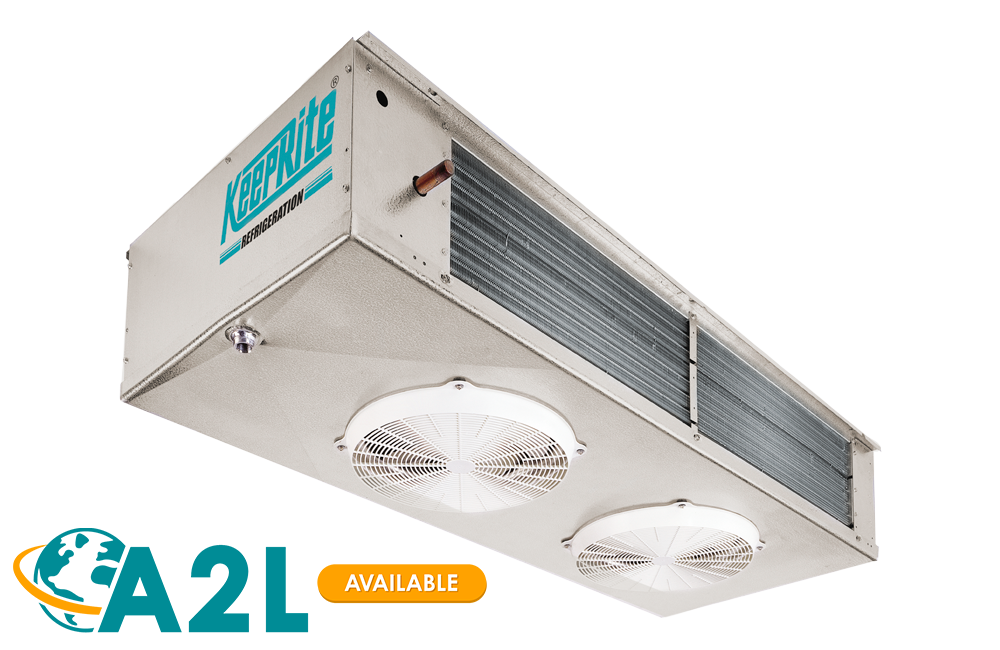

LV- Low Velocity Evaporators are engineered for positive low air movement and even temperatures throughout the refrigerated space, while maintaining desired humidity conditions. Features a cleanable, durable textured aluminum cabinet, corrosion resistant fasteners, low speed plug-in motor/fan assemblies and a positive sloped drain pan assembly.

See our Product Data and Installation for full details (PDF)

We offer a complete line up of products that meet or exceed the new DOE/NRCAN 2020 “AWEF” requirements. Use this guide which collects all of the AWEF numbers for DOE/NRCAN 2020 Compliant equipment: https://docs.k-rp.com/awef/kr_awef_quick_reference.pdf

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ

Features/Options

Certification:
Standard Features
  • EC motors with patented SmartSpeed® Technology.
  • Compatible with Low GWP Refrigerants
  • Heavy gauge textured aluminum cabinet construction resists scratches/corrosion and minimizes weight for shipment, installation and service.
  • Specially designed for quiet operation – ideal for prep. rooms.
  • Dual refrigeration coils with two-way air distribution reduces air velocities to minimize product dehydration.
  • Reduced operating charge with 3/8” OD tubing
  • Spacious end compartment allows for easy component installation.
  • Attractive and durable high-density polypropylene fan guards.
  • Hinged drain pan provides convenient access for cleaning.
  • Terminal board allows for easy electrical connections.
  • Internally enhanced tube
Available Options:
  • ESP+ Intuitive Evaporator Control Technology
  • Hot gas loop pan with hot gas defrost models
  • Factory installed expansion valve, solenoid valve and room thermostat
  • Painted cabinet
  • Corrosion protection: alternate fin materials and coatings
  • PSC Motors (115, 230 + 460V)
  • Additional options available

Specifications

Application:
  • Medium Temperature Applications
  • 28°F and above room temperatures
  • Air, electric and hot gas defrost models
  • R407A, R448A, R449A, R404A, R507
Capacity:
  • Available in 9 sizes from 5,870 BTU/h to 44,000 BTU/h
Electrical:
  • 115/1/60
  • 208-230/1/60
  • 100/1/50
  • 200-220/1/50

Available Features and Technology
