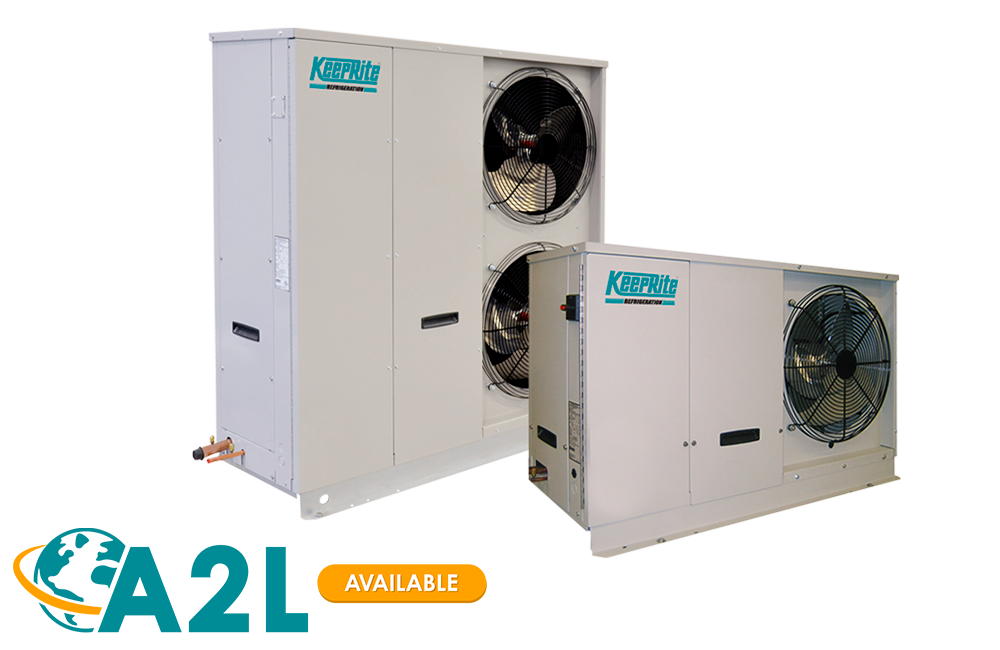

KQZ – Outdoor Air Cooled Quiet Scroll Condensing Units

The Quiet Condensing Unit is well-suited where space limitations, energy efficiency or sound levels are of concern. Designed for refrigeration duty, a wide range of options provide flexibility suitable for a variety of applications. Its compact design and attractive styling make the Quiet Unit highly desirable in urban or light commercial applications.

KES – Indoor/Outdoor Air Cooled Semi-Hermetic Condensing Units
June 28, 2016
KEH – Indoor/Outdoor Air Cooled Hermetic Condensing Units
June 29, 2016
Show all

CONTACT A PRODUCT SPECIALIST TODAY:

smcu@k-rp.com
1-844-893-3222 ext. 521

Overview

The Quiet Unit is well-suited where space limitations, energy efficiency or sound levels are of concern. Designed for refrigeration duty, a wide range of options provide flexibility suitable for a variety of applications. Its compact design and attractive styling make the Quiet Unit highly desirable in urban or light commercial applications, and electronic controls offer remote monitoring capabilities and a wide array of alarms and diagnostic tools. Existing technologies have been combined for the first time to create a product specifically for the North American market. Variable-speed EC motors are used to control head pressure resulting in the lowest watt consumption of any comparable product currently available. Models feature energy-efficient Scroll Compressors.

Our Quiet condensing units meet or exceed the new “AWEF” requirements for condensing units. Use this guide which collects all of the AWEF numbers for compliant equipment: https://docs.k-rp.com/awef/kr_awef_quick_reference.pdf

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ


Features/Options

Certification:
Features:
  • Compatible with low GWP refrigerants
  • Copeland scroll compressors (except on 006H8 model)
  • Heavy duty weatherproof construction
  • Painted cabinet
  • High efficiency enhanced tube and fin condenser design
  • Gold CoatTM fins (epoxy coating)
  • High efficiency variable speed EC motor as head pressure control
  • Sealed liquid line filter drier and sight glass
  • Heated and insulated receiver
  • Receiver with fusible plug and liquid shut-off valve
  • Suction & discharge service valves
  • Suction accumulator (low temperature models)
  • Liquid injection (low temperature models)
  • Discharge temp sensor (low temperature models)
  • Crankcase heater
  • Fixed high pressure control
  • Dixell XC35CX condensing unit controller
  • Unit leak tested and shipped with helium holding charge
Available Options:
  • Suction accumulator (optional on high and medium temp models)
  • Sealed suction filter
  • Flooded head pressure control (adjustable)
  • Non-fused disconnect switch
  • Mechanical time clock
  • Sound insulated compressor compartment
  • Wall mount kit
  • Extended leg kit
  • Wind guard
  • Oil separator (2 fan models only)
  • QuickVac evacuation and refrigerant recovery valves
  • Over-sized receiver
  • Electronic voltage / phase monitor
  • Digital Scroll on certain models (consult factory)

Specifications

Application:
  • Medium and Low Temperature Refrigeration applications.
  • Outdoor
Capacity:
  • 1 to 6 HP for medium and low temperature applications
Electrical:
  • 380-400/3/50
  • 200-220/3/50
  • 220/1/50
  • 460/3/60
  • 208-230/3/60
  • 208-230/1/60

Available Features and Technology

Quiet Unit
