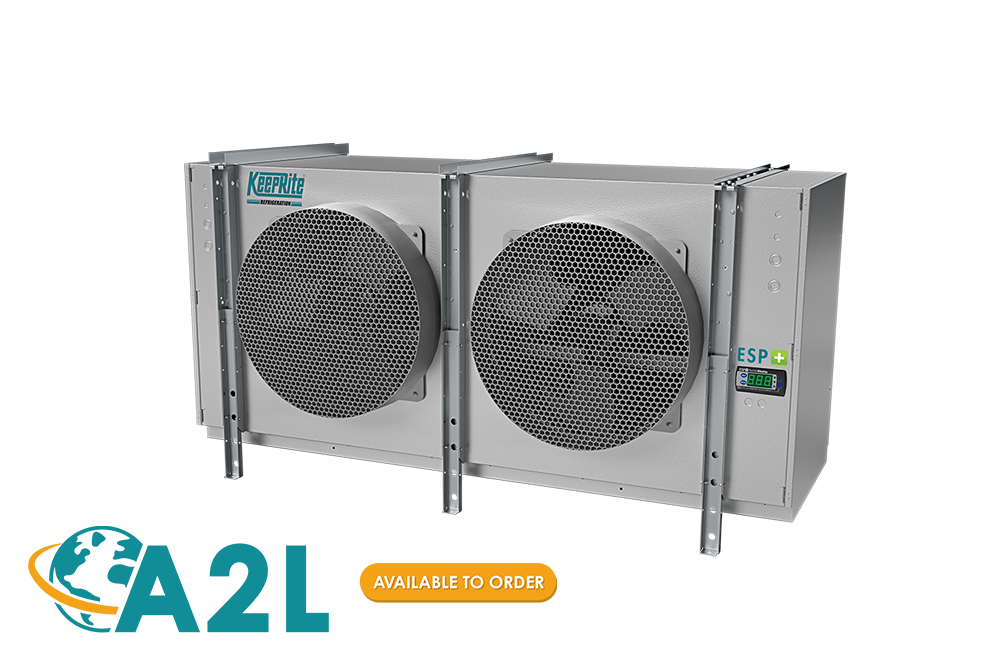

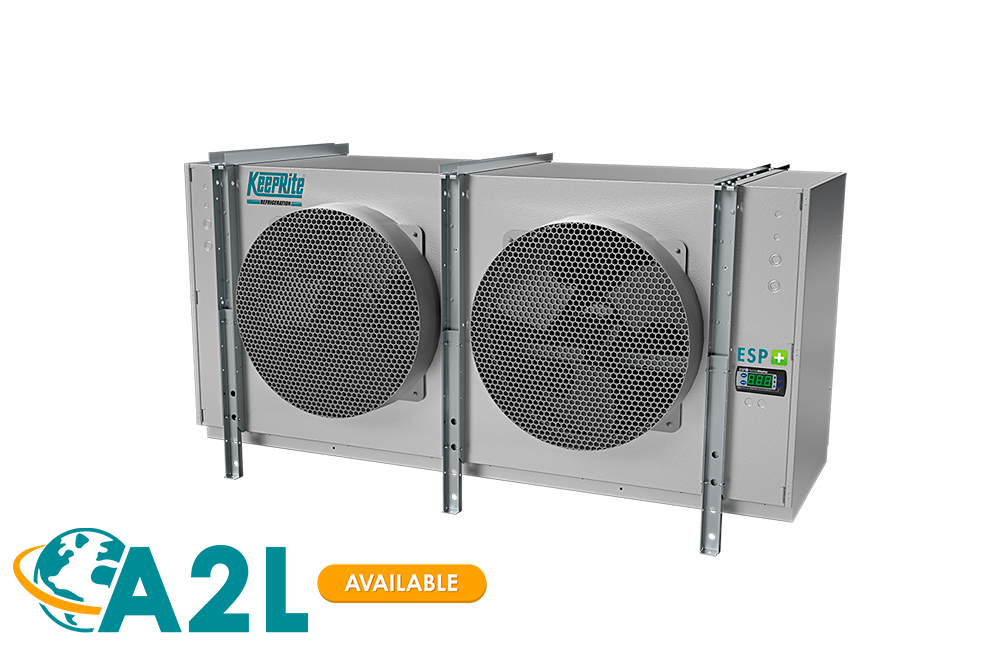

KHP – High Profile Evaporators

The newly engineered KHP series evaporators are ideally suited for warehouse/industrial cooler and freezer applications.

Selecting Defrost Kits and Fuse Packages
April 27, 2021
Show all

CONTACT A PRODUCT SPECIALIST TODAY:

[email protected]
1-844-893-3222 ext. 520

Overview

We offer a complete lineup of products that meet or exceed the new DOE/NRCAN 2020 “AWEF” requirements. Use this guide which collects all of the AWEF numbers for DOE/NRCAN 2020 Compliant equipment.

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ

Ideally suited for large warehouse/industrial type applications.

Key Features:

  • New honeycomb fan guards help provide industry leading throw (175’/53m*) without Boosters
  • New fan blade design provides quieter operation (65 dBA**) without sacrificing performance
  • AWEF approved models available
  • Single fan and multi-fan configurations
  • Improved Energy Saving Defrost Control
  • Enhanced tubing for maximum efficiency
  • Reduced refrigerant charge
*Standard high efficiency fan guard in open space
**65 dBA at 10’ (3m), single fan model in open field test Gen D

Features/Options

Certification:
Features:
  • EC motors with patented SmartSpeed® Technology (Gen D)
  • Compatible with Low GWP refrigerants
  • Totally enclosed high efficiency EC motors (Gen D)
  • High efficiency and high strength fan guard (Gen D)
  • Hinged access panels
  • Internally enhanced tubing (Except 4 fan models Gen B)
  • Ample electrical and header compartments
  • Adjustable Fan Delay on medium temp. Electric Defrost and Hot Gas units
  • Fixed fan delay on all low temp units
  • Electronic defrost termination on all electric and hot gas defrost units
  • Liquid line solenoid valve wire harness factory installed
  • Schrader valve on suction header
  • Quiet swept wing fan blade
  • 1-1/4″ NPT drain fitting
  • Unit shipped with dry air holding charge
  • Factory installed distributor nozzle
Available Options:
  • ESP+ Intuitive Evaporator Control Technology
  • Hot gas loop pan with hot gas defrost models
  • Factory installed expansion valve, solenoid valve and room thermostat
  • Corrosion protection: alternate fin materials and coatings
  • Wire fan guard
  • Totally enclosed motors (Gen B)
  • EC motors available with 2-speed, variable speed or provided less controls (by others) (Gen B)
  • Additional options available, please contact factory

Specifications

Application:
  • High, Medium and Low Temperature Applications.
  • Optional Blast cooler and freezer applications available.
  • -30°F and above room temperatures
  • Air, electric and hot gas defrost (reverse cycle or 3 pipe) models
  • R407A, R448A, R449A, R407C, R404A, R507
Capacity:
  • High Temp. models from 54,400 to 308,300 BTUH @10°F TD
  • Medium Temp. models from 50,300 to 290,800 BTUH @10°F TD
  • Low Temp. models from 47,000 to 252,300 BTUH @10°F TD
Electrical: (Varies with application and generation)
  • 208-230/1/60
  • 208-230/3/60
  • 460/1/60
  • 460/3/60
  • 575/3/60
