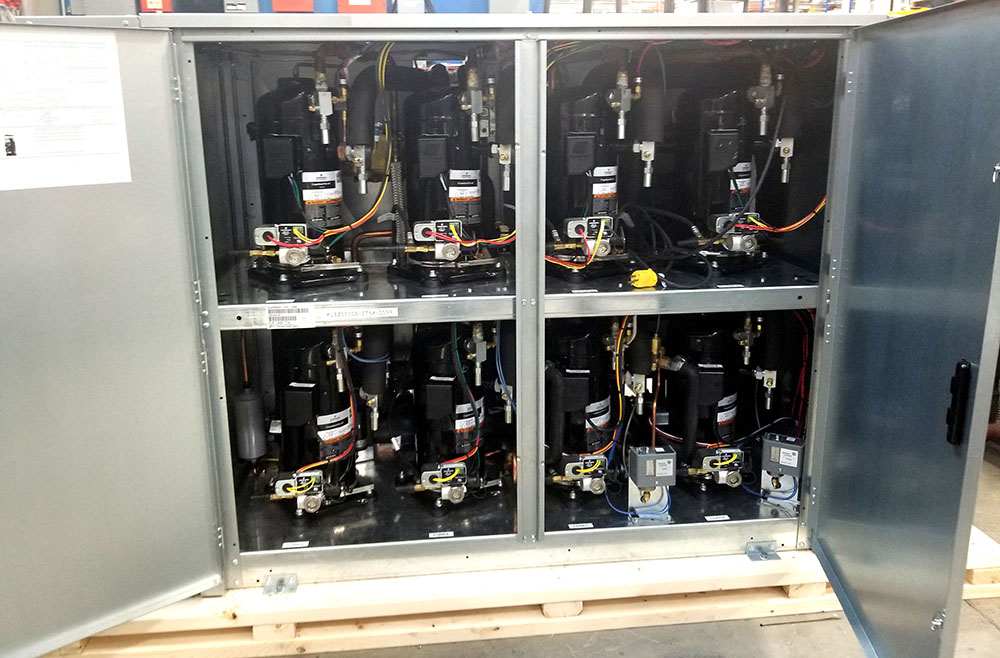

53HP horizontal, 8 scroll compressors (2 low temp, using liquid and vapour injection for cooling)
Electrical panels on each end, one housing a CPC controller
Section of the roof can be removed to access the oil separator filter

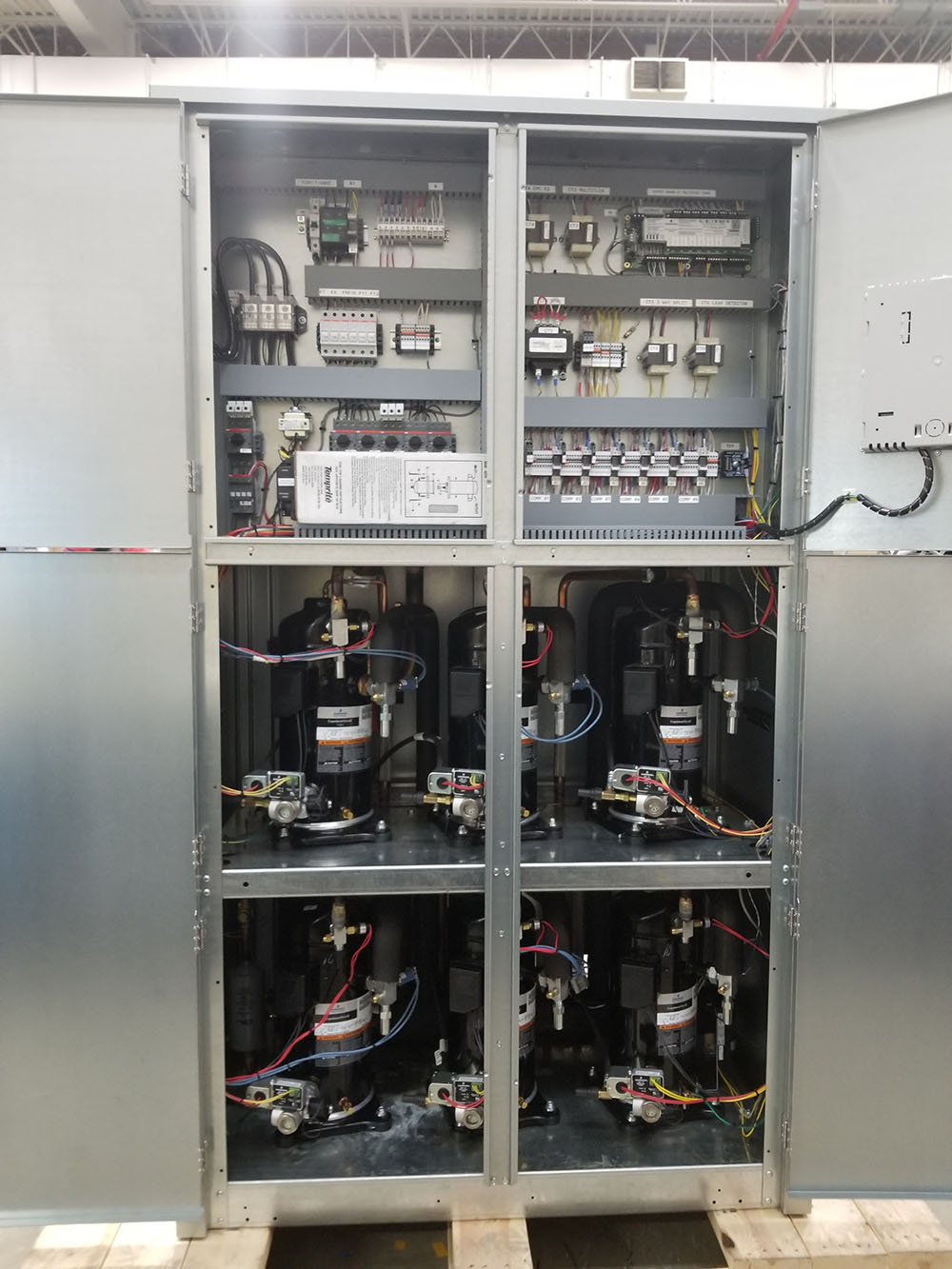

42 HP Vertical Link
42HP vertical, 6 scroll compressors with coalescent oil separator
Refrigerating 23 supermarket cases and walk in coolers
CPC controller for compressor system and evaporator monitoring and defrosting

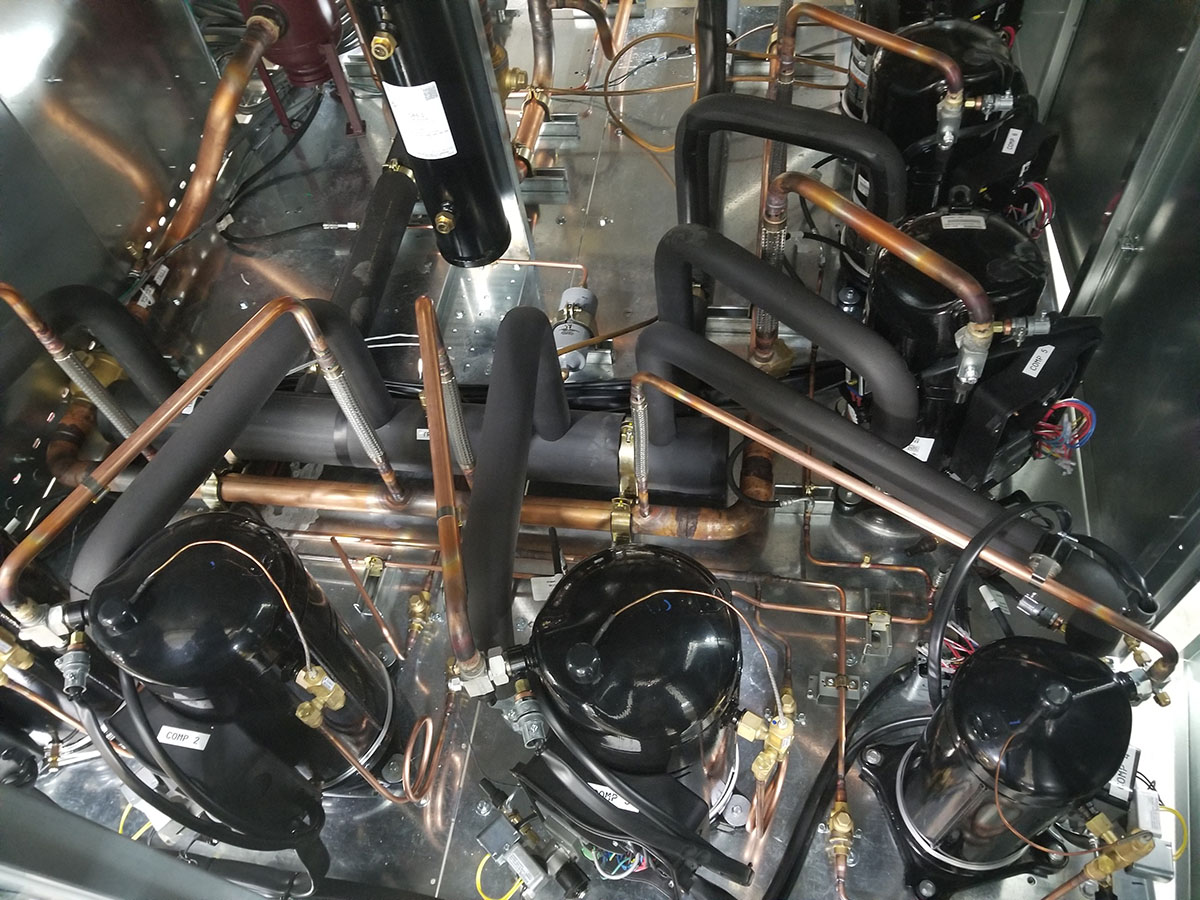

78HP LINK+ With 7 Large Scrolls
78HP with 7 scroll compressors , 4 low temp and 3 medium temp.
Coalescent oil separator and oil reservoir, managing oil return for all compressors
Compressors, oil separators and valves conveniently situated for servicing and maintenance
Compressors easily be removed by direct access through the doors

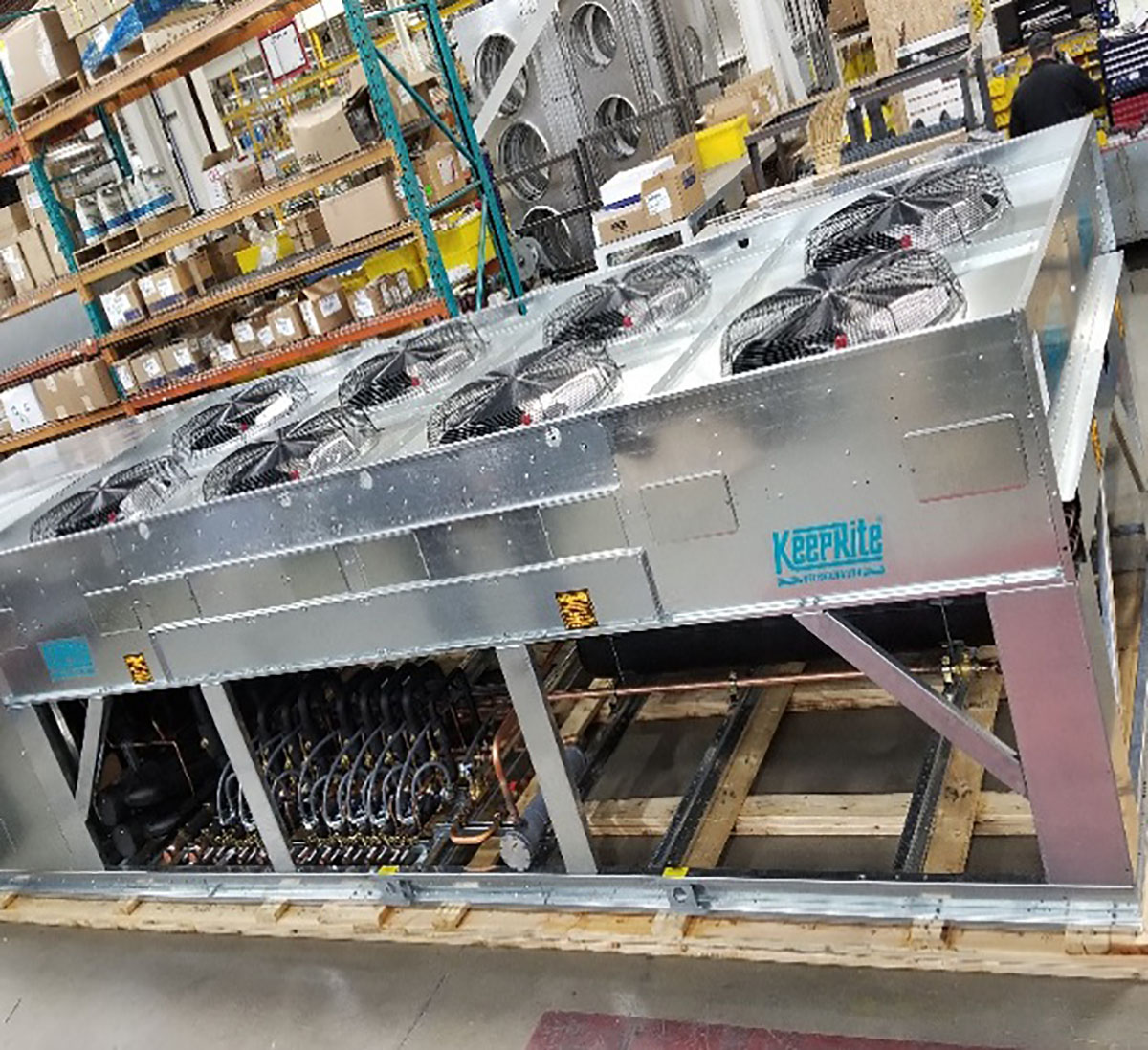

LINK+ 2X4 Fan Condense
2 X 4 air cooled condenser
Supports any of our air cooled condenser line
Condensers with multiple options:
horizontal receiver, adjustable flooded head pressure control,
fan cycling, variable speed motor lead fan,
coil coating, relay board, extended leg kit… many more

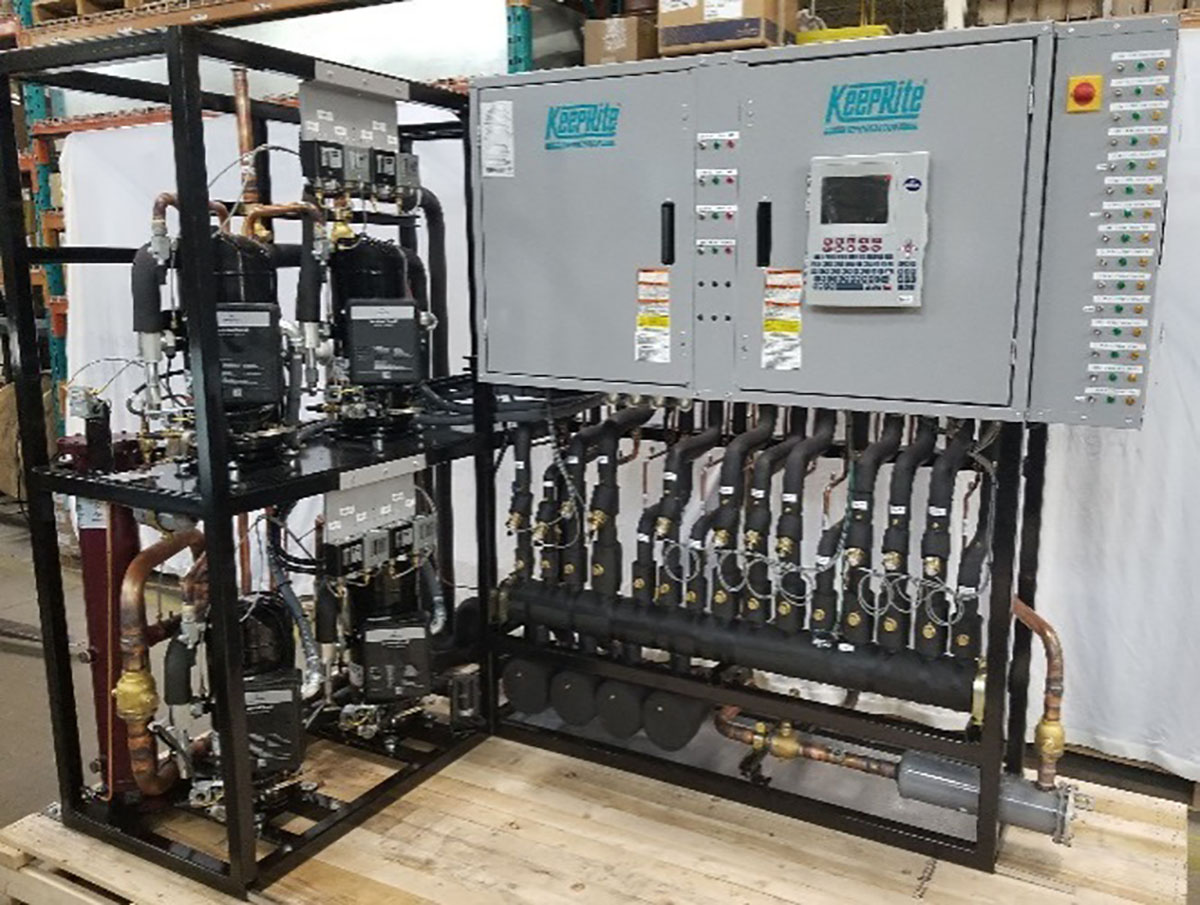

60HP L Shaped Rack
60HP with 4 large scroll compressors, 15 branch circuits, 11 CDS valves and a CPC controller
Challenging INSTALL:
Customer requested rack be designed to fit in a corner of building
Built on an L-shaped frame to be placed in a corner while allowing access to all of the components from the front
All filters and ball valves positioned within arm’s reach for easy maintenance

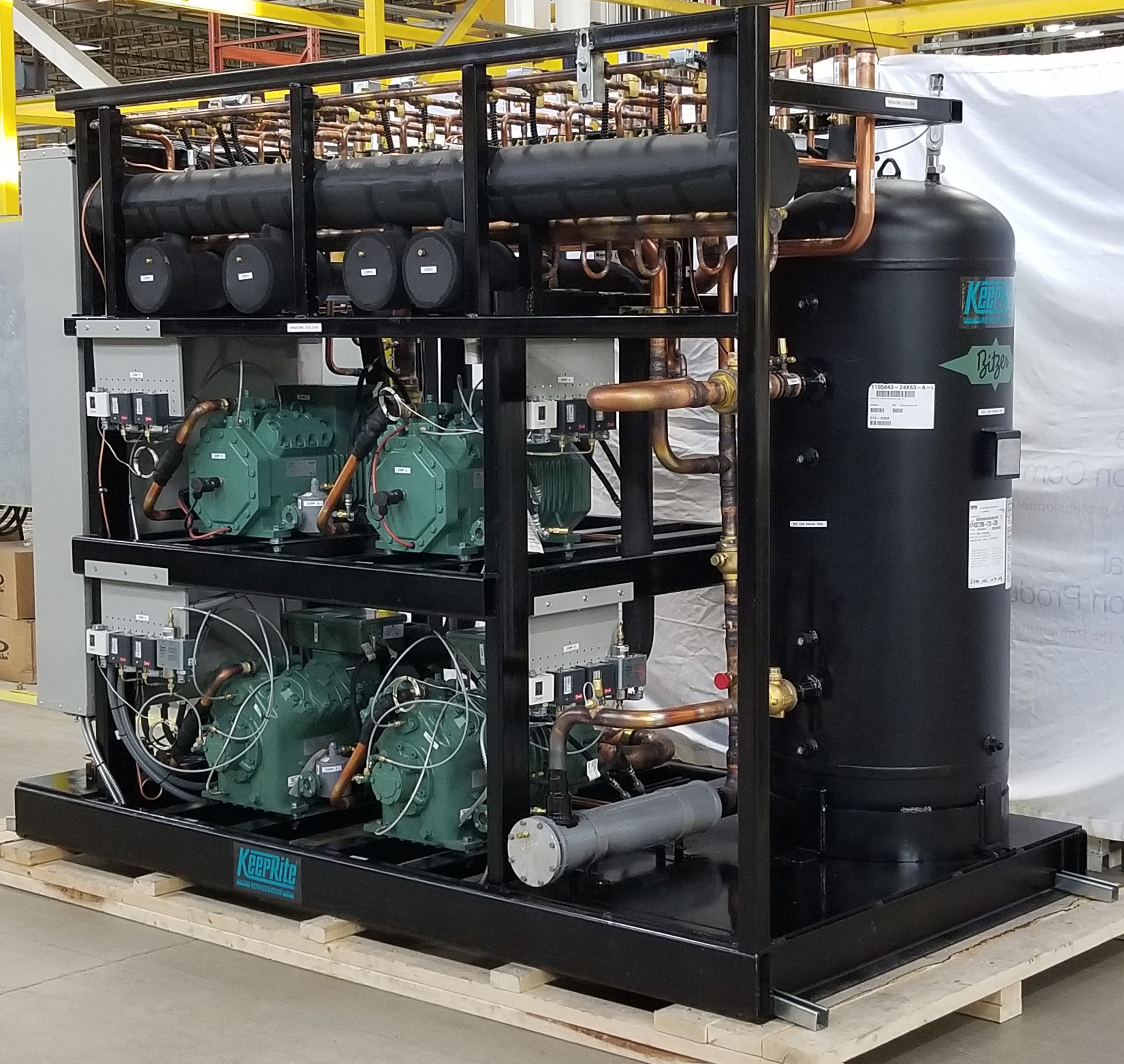

72HP Rack
72HP, using 4 Bitzer semi-hermetic compressors, 11 hot gas branch circuits with CDS valves
Challenging INSTALL:
Small footprint and against a wall
Custom designed and built so that all its components fit in the required space
BUT remain accessible for servicing and maintenance
Cuction filters and liquid drier accessible from front and
All branch circuits accessible from top

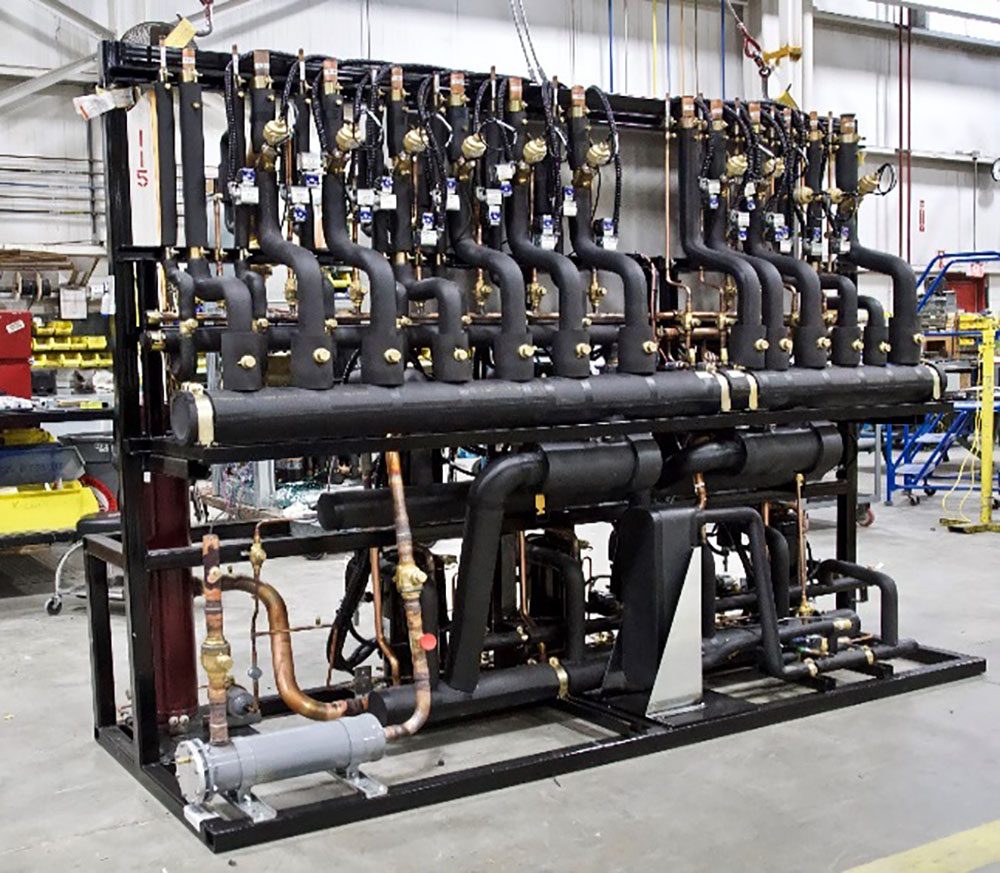

Subcooled Mini Rack
53HP with 6 scroll compressor servicing medium and low temp suction groups
12 hot gas and off time branch circuits with Danfoss EEPRs valves
Uses mechanical subcooling to sub cool the liquid to 50°F
Liquid line insulated to maintain the temperature of subcooled liquid required by the evaporators
Field connected to an air-cooled condenser with an integral receiver

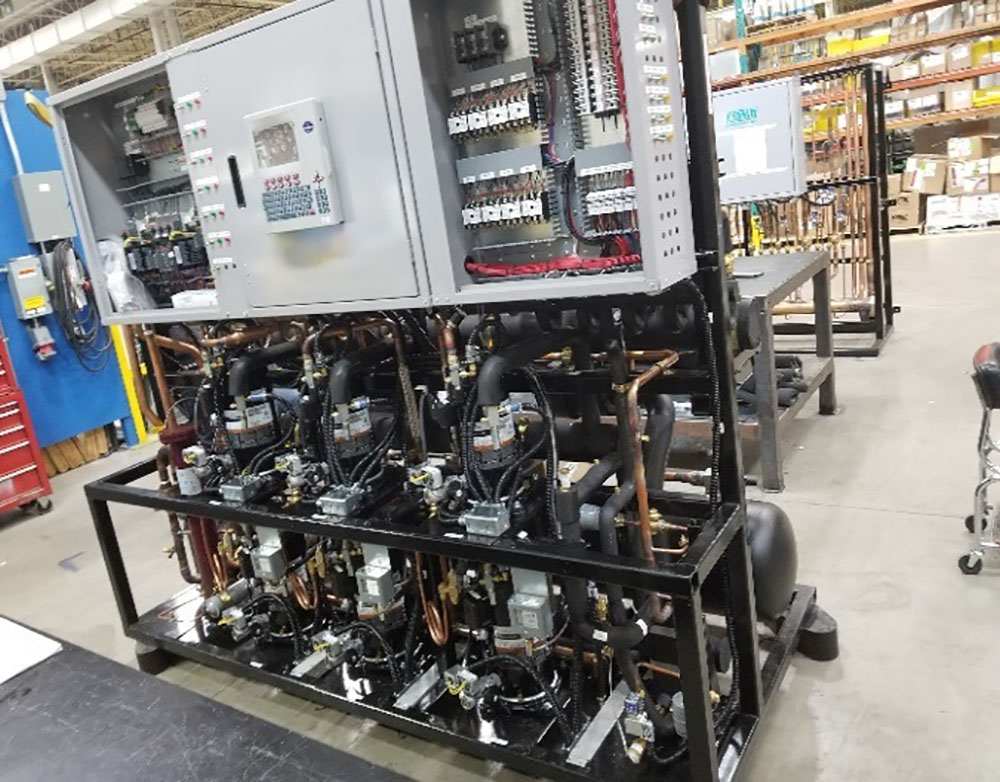

Extended Profile Mini Rack
25HP with 6 scroll compressor servicing medium and low temp suction groups
Uses CPC controller, breakers and contactors for controlling the connected evaporators
Extended profile to house a 93” long horizontal receiver and two electrical panels, accommodating all contactors and control boards for compressors and evaporators

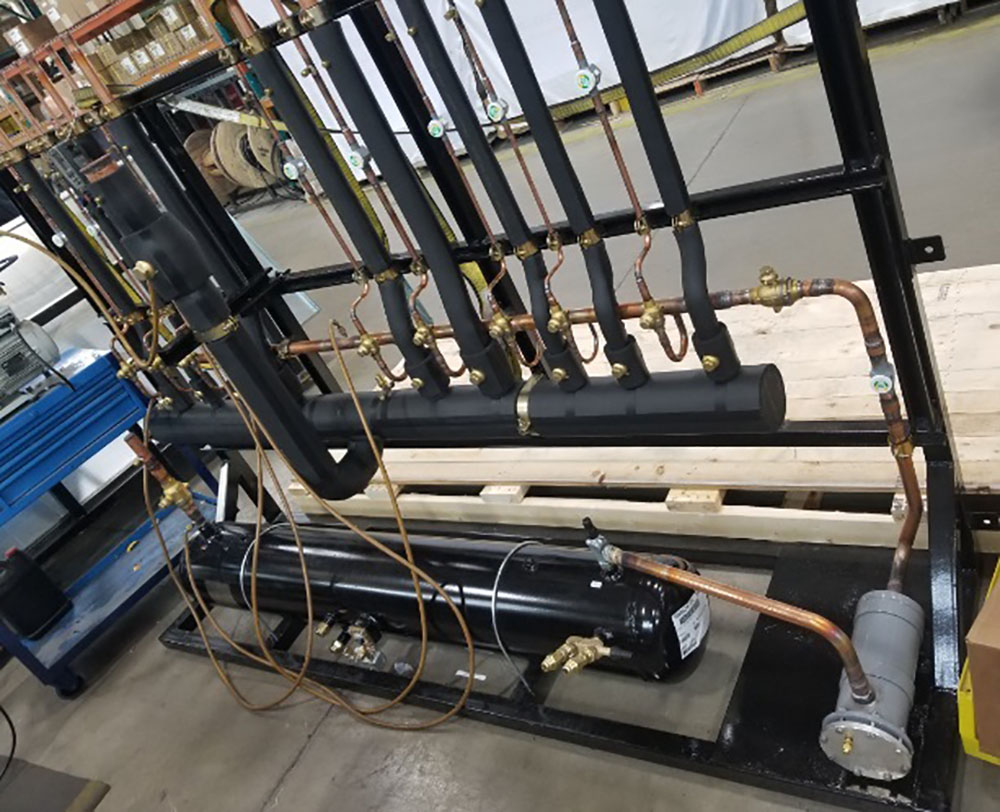

Tree With Receiver Mounted
10 3/4” X 72” horizontal receiver
9 off-time branch circuits
Liquid lines have sight glasses and all suction lines are insulated

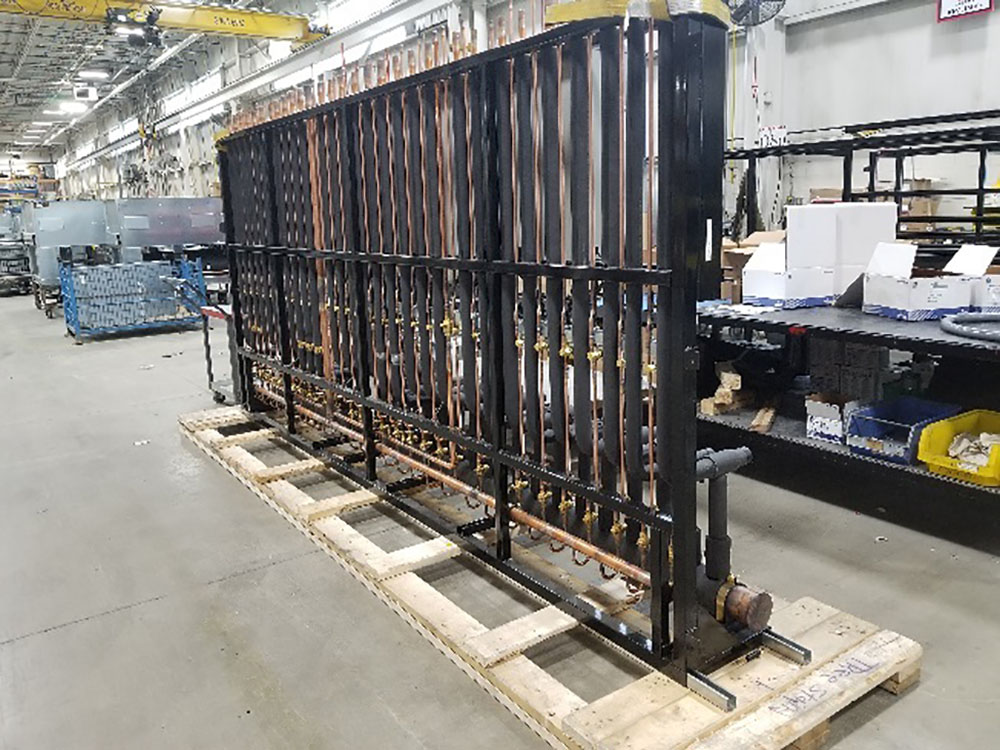

29 Branch Circuits
For 124 HP Rack
Medium temp and low temp suction groups
29 hot gas and off time defrost circuits
Circuits use EPRs for evaporator pressure control
Suction headers are oversized to function as accumulators
