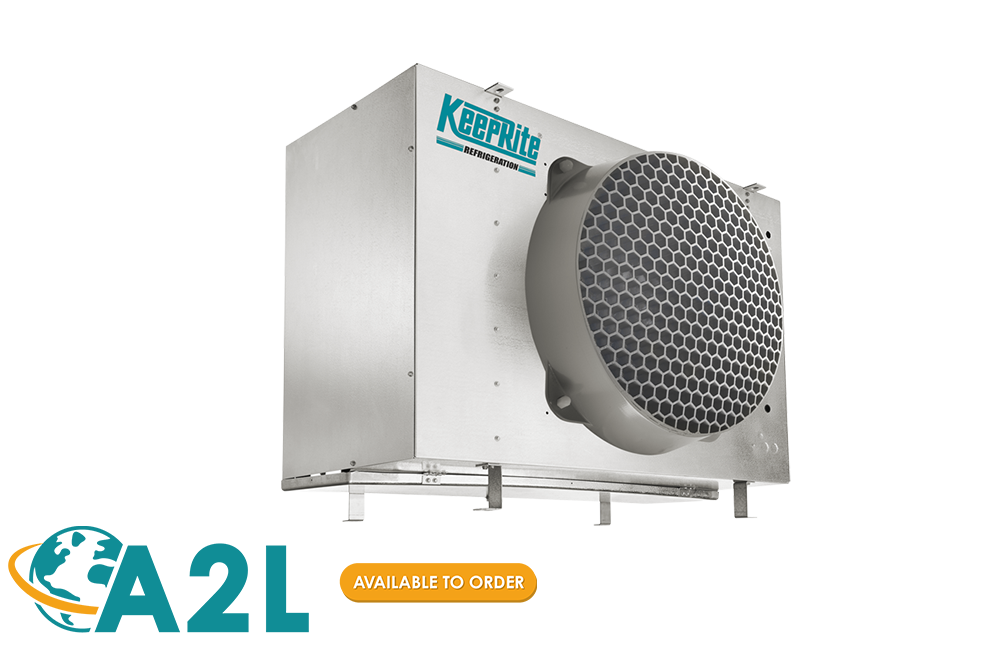

KEP – Extended Profile Evaporators

A smaller footprint than high profile evaporators – yet delivering similar amounts of air throw. Ideal for larger walk-in, warehouse, dock coolers/freezer applications.

Manuals & Info

Product Manuals & Specifications

Product Manual - A2L, A1 & CO2 (AWEF-compliant)

Product Manual - (AWEF-exempt)

General Product Specifications

ESP+ Operation Manual - A2L & A1

Defrost Kit and Fuse Package Selection Guide

DISCONTINUED MODELS

Product Manual - (AWEF-exempt, pre-July 2020)

RELATED SALES MATERIAL

LIST Prices (All Models)

ADDITIONAL LINKS

AWEF FAQ

Defrost Kit and Fuse Package Selector Tool

Search for KEP Parts In The Service Parts Database

Download AutoCAD Drawings

Download Revit Files

Overview

The EP Extended Profile Unit Cooler line offers a flush to ceiling design featuring internally enhanced tube and our patented SmartSpeed technology.

A wide range of capacities bridge between our Medium and High Profile Evaporators – offering a smaller footprint than the high profile evaporator yet delivering a sufficient amount of air throw that can be utilized in larger walk-in, warehouse, dock coolers/freezer applications.

We offer a complete line up of products that meet or exceed the new DOE/NRCAN 2020 “AWEF” requirements.

Additionally, we offer models for applications which are DOE/NRCAN 2020 “AWEF” Exempt. See our Product Data and Installation for full details

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ

Available features and Technology

Features/Options

Features

EC motors with patented SmartSpeed® Technology.
Compatible with Low GWP Refrigerants (A1 & A2L)
High efficiency and high strength fan guard
Hinged access panels
Internally enhanced tubing
Ample electrical and header compartments
Adjustable Fan Delay on Electric Defrost units
Liquid line solenoid valve wire harness factory installed
Schrader valve on suction header
Positive slope, hinged drain pan
Central drain connections (approximate)
Universal drain fitting
Large 3/4” ID (3/4” MPT) drain hole
Factory installed distributor nozzle
CO₂ models certified for 650 PSI (45 Bar)
All A2L units will include Leak detection system with SSOV (Safety Shut Off Valve) and CSOV (Check Shut Off Valve) – Shipped Loose
All our A2L compatible “E-Generation” evaporators are “Dual Rated” and support both A1 and A2L refrigerants.

Available Options

ESP+ Intuitive Evaporator Control Technology (Standard on A2L “E” Generation)
Factory installed expansion valve, solenoid valve and room thermostat
Hot gas loop pan with hot gas defrost models
Electronic expansion valve (EEV)
Transducer for EEV
Insulated drain pan
Wire fan guard
230/460V Variable Speed EC Motors
Corrosion protection: alternate fin material and coatings
90 Bar (1300PSI) CO₂ models available, please contact the factory
Additional options available, please contact factory

Certification

ULCNSFGen D and Gen E

Specifications

Application

High, Medium and Low Temperature Applications
-30°F and above room temperatures
Air, electric, and hot gas defrost (reverse cycle or 3 pipe) models
R407A, R448A, R449A, R404A, R507
R454A, R454C, R455A
CO₂

Capacity

448A @ 10°TD
High Temp. models from 30,600 to 135,000 BTUH @10°F TD
Medium Temp. models from 28,700 to 125,000 BTUH @10°F TD
Low Temp. models from 26,600 to 114,500 BTUH @10°F TD
V Low Temp. models from 23,200 to 98,500 BTUH @10°F TD

Electrical

208-230/1/60208-230/3/60460/1/60460/3/60
